Product Details
Place of Origin: Shenzhen, China
Brand Name: Googol
Certification: CE，FAD，ROHS
Model Number: P3.9-7.8
Document: Product Brochure PDF
Payment & Shipping Terms
Pixel Pitch: |
3.9~7.8mm |
Gray Scale: |
16bit |
LED Configuration: |
SMD 2121 |
Repetition Frequency: |
60fps |
Sphere Size: |
500mm |
Input Voltage(AC): |
AC 180-264V/60Hz |
Pixel Pitch: |
3.9~7.8mm |
Gray Scale: |
16bit |
LED Configuration: |
SMD 2121 |
Repetition Frequency: |
60fps |
Sphere Size: |
500mm |
Input Voltage(AC): |
AC 180-264V/60Hz |
Customizable Differen Shape Transparent LED Display for Various Events and Venues

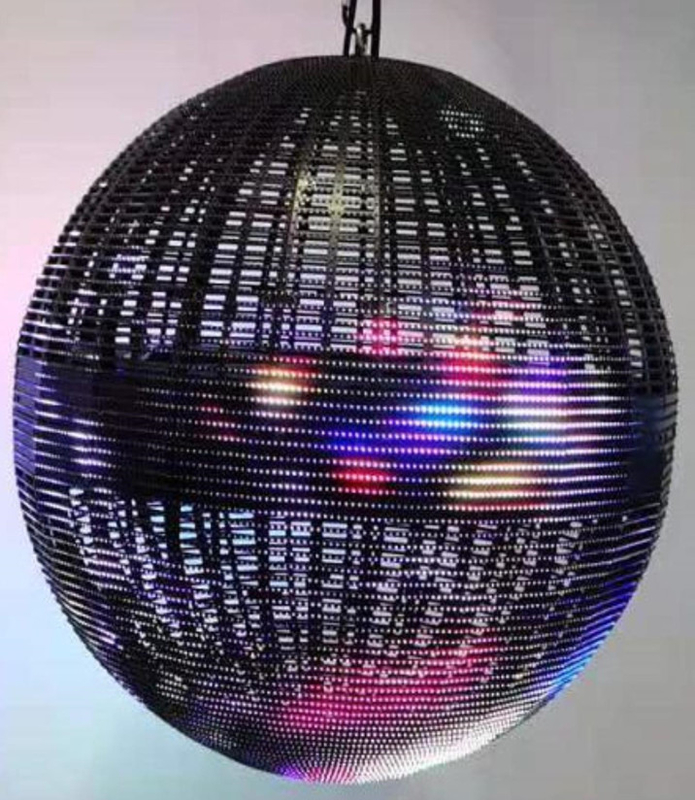

Product Introduction:1, spherical LED display screen is composed of red, green and blue LED beads and special system,the brightness of thebeads can be selected and adiusted accordina to the use of the environment, the display screen can not only be computer controled synchronously, but also be asynchronous controled.
2, The installation of LED spherical transparent screen is fast and convenient. It is widely used, and can be arranged according to personal needs. lnstalled in the hotel for weddings, birthday parties, etc. And it can be used for private living room creative decoration, but also can be used for the company front deskexhibition hall, bar, stage, KTV, gold shop, shopping malls, supermarkets, schools and so on.
3, The video material can be customized according to the needs of the scene video material, the best display material is fireworks, petals, text.
4, The size can be customized.
Key parameters:
| Part Number | P3.9~7.8 | Part Number | P3.9~7.8 |
| Pixel Pitch | 3.9~7.8mm | Gray Scale | 16bit |
| LED Configuration | SMD 2121 | Repetition Frequency | 60fps |
| Sphere Size | 500mm | Input Voltage(AC) | AC 180-264V/60Hz |
| Screen Resolution | 384*97dot | Average Power | 120W/㎡ |
| Permeation Ratio | 75% | Max Power | 400W/㎡ |
| Number of Modules | 48+1 | Operating Temperature | -20℃~+60℃ |
| Luminance | 800~1200cd/㎡ | Operating Humidity | 10%~85%RH |
| Pixel Density | 32,000cd/㎡ | Spanlife | 100,000h |
| Refresh Frequency | 1920Hz | Screen weight | 12kg |
| Viewing Angle | 360° | Min. Viewing Distance | ≥5m |
| IP Rate | IP43 | Cabinet Material | Iron |
